Clutch Stuff

I might as well rename my blog 'Will's POR15 blog'! I've been using huge amounts of the stuff over the last month! Firstly there was my alloy bellhousing which I painted inside and out, then there was the clutch release lever and then finally the gearbox casing which I painted up to match. The grey doesn't seem to go on quite as well as the black but the finish is very good all the same.

Once the bellhousing was painted I refitted the steel insert that the release bearing carrier slides on. After doing this I realised that something wasn't quite right. Canley Classics website describes the insert as 'Part 122566 - Bellhousing Centre Her/Spit (Scroll Type)' but when I took it off there wasn't any kind of oil seal on there! Fortunately the situation was easy to solve with a later type bellhousing centre that takes an oil seal.

While I was there I thought I'd renew the slave cylinder pushrod and the pin that holds it in the release arm. Incredibly, there was more than 2mm of wear in these two parts! The new pushrod was a bit fat and needed the attention of a bench grinder but was otherwise easy to fit. Once I'd done that I tried to fit the release lever into the bellhousing and ran into another problem!

Basically, the clutch release lever just wouldn't move smoothly over the bellhousing centre. This seemed to be due to the inside of the bellhousing being slightly cast wrongly. I have to say that the general quality of the alloy bellhousing is pretty poor and I suspected when I first saw it that it might need some 'altering'. In the end though, I decided to just grind a bit off the bottom of the release arm instead. This gave the necessary clearance and the throwout sleeve on the arm now slides smoothly like it should!

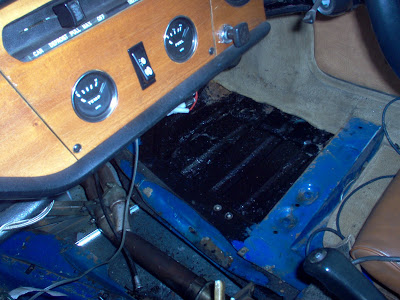

While I was in a painting frame of mind I painted the engine back plate and the drivers side floor in POR15. The drivers side floor is a mess and has a couple of plates welded on and a few tiny holes. I'm aiming to replace this in the near future but for the time being I just want to stop it getting worse so painting is the answer!

I did actually buy an alloy engine backplate but I don't think I'm going to use it. I've heard tales of the alloy ones cracking around the bottom bolt holes and I sure as hell can't be bothered to sort that out in the future so I'll be sticking with steel!

I've had one slight hitch with the engine this week. I was just fitting the renewed rear oil seal to the back of the sump when I stripped the threads in the alloy housing. This was a right pain because my brother came to visit this weekend and I had hoped to have the gearbox and engine ready to go back together. It'll have to wait now until I've helicoiled the threads. I've not done this before but it looks straightforward enough. I've ordered a kit from the eBay shop of Chronos Engineering. Hopefully that'll arrive in the week and I'll be back on track next weekend!
